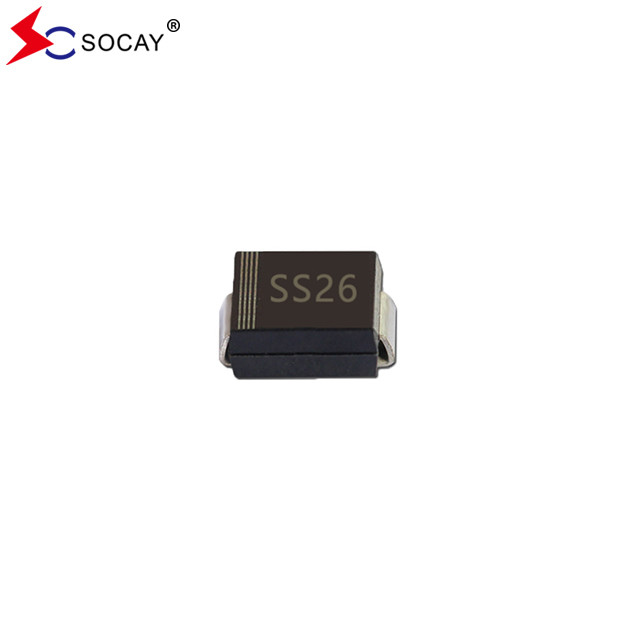

SOCAY 60VRRM Schottky Diode SS26B Surface Mount Schottky Barrier Rectifiers
Schottky Diode DATASHEET: SS22B~SS220B(SMB)_v93.1.pdf
Schottky Diode SS26B Characteristic:
SS26B Green molding compound as per IEC 61249 standard.
Mechanical Data of Schottky Diode SS26B:
Approximate Weight: 0.092 grams.
Schottky Diode SS26B Electrical and Thermal Characteristics (TA=25℃ unless otherwise noted):
| Parameter | Symbol | SS26B | Unit | |
| Max. Repetitive Peak Reverse Voltage | VRRM | 60 | V | |
| Schottky Diode Max. RMS Voltage | VRMS | 42 | V | |
| Schottky Diode Max. DC Blocking Voltage | VDC | 60 | V | |
| Max. Average Forward Rectified Current | IF(AV) | 2 | A | |
| Peak Forward Surge Current : 8.3ms Single Half Sinewave Superimposed on Rated Load | IFSM | 50 | A | |
| Schottky Diode Maximum Forward Voltage at 2A per Diode (Note 1) | VF | 0.7 | V | |
| Schottky Diode Maximum DC Reverse Current at Rated DC Blocking Voltage | TJ=25℃ | IR | 0.09 | mA |
| TJ=100℃ | 20 | |||
| Schottky Diode Typical Thermal Resistance | RθJL | 12 | ℃/W | |
| Operating Junction Temperature Range and Storage Temperature Range |
TJ, TSTG |
-55 to +150 | ℃ | |
Schottky Diode SS26B Rating and Characteristic Curves:

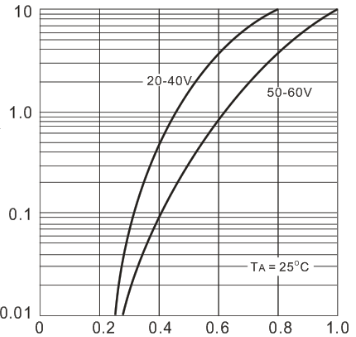

Fig1. Typical Forward Characteristics:

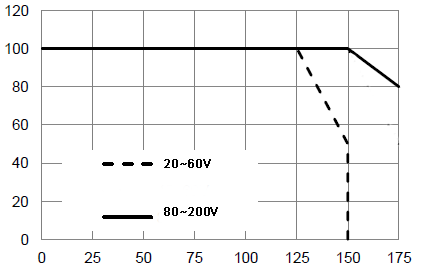

Fig2. Operating Temperature Derating Curve:
SMB Package Dimensions of Schottky Diode SS26B:
(Unit:inch(mm))
Packaging Information of Schottky Diode SS26B:
| Part Number | Component Package | Quantity | Packaging Option |
| SS26B | SMB/DO-214AA | 3000 PCS | per 13" plastic Reel |
| 800 PCS | per 7" plastic Reel |
