| SMAJ28CA Name | TVS Diodes |
|---|---|
| SMAJ28CA Package Type | DO-214AC |
| SMAJ28CA Vrwm | 28.0V |
| SMAJ28CA Vbr@It (Min.) | 31.10V |
| SMAJ28CA Vbr@It (Max.) | 34.40V |
| SMAJ36A Name | TVS Diodes |
|---|---|
| SMAJ36A Package Type | DO-214AC |
| SMAJ36A Vrwm | 36.0V |
| SMAJ36A Vbr@It (Min.) | 40.00V |
| SMAJ36A Vbr@It (Max.) | 44.20V |
| SMAJ70CA Name | TVS Diodes |
|---|---|
| SMAJ70CA Package Type | DO-214AC |
| SMAJ70CA Vrwm | 70.0V |
| SMAJ70CA Vbr@It (Min.) | 77.80V |
| SMAJ70CA Vbr@It (Max.) | 86.00V |
| SMAJ43A Name | TVS Diodes |
|---|---|
| SMAJ43A Package Type | DO-214AC |
| SMAJ43A Vrwm | 43V |
| SMAJ43A Vbr@It (Min.) | 47.80V |
| SMAJ43A Vbr@It (Max.) | 52.80V |
| SMAJ11A Name | TVS Diodes |
|---|---|
| SMAJ11A Package Type | DO-214AC |
| SMAJ11A Vrwm | 11.0V |
| SMAJ11A Vbr@It (Min.) | 12.20V |
| SMAJ11A Vbr@It (Max.) | 13.50V |
| Package Type | SOD-123 |
|---|---|
| SMF22CA Reverse Stand-OffVoltage VRWM | 22.0 |
| SMF22CA Breakdown Voltage VBR(V) @IT MIN | 24.40 |
| SMF22CA Breakdown Voltage VBR(V) @IT MAX | 26.900 |
| SMF22CA TestCurrentIT (mA) | 1 |
| Reverse Stand-Off Voltage | 78.0V |
|---|---|
| Breakdown Voltage @It (Min.) | 86.70V |
| Breakdown Voltage@It (Max.) | 95.80V |
| Test Current | 1mA |
| Maximum Clamping Voltage @Ipp | 126.0V |
| 5KP22CA Vrwm | 22.0V |
|---|---|
| 5KP22CA Vbr@It (Min.) | 24.40V |
| 5KP22CA Vbr@It (Max.) | 26.90V |
| 5KP22CA It | 1mA |
| 5KP22CA Vc@Ipp | 35.5V |

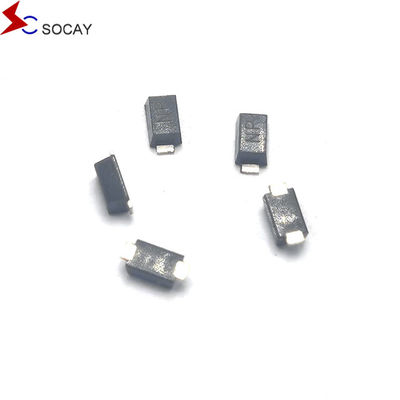

| Package Type | SOD-123 |
|---|---|
| SMF51A Reverse Stand-OffVoltage VRWM | 51.0 |
| SMF51A Breakdown Voltage VBR(V) @IT MIN | 56.70 |
| SMF51A Breakdown Voltage VBR(V) @IT MAX | 62.70 |
| SMF51A TestCurrentIT (mA) | 1 |

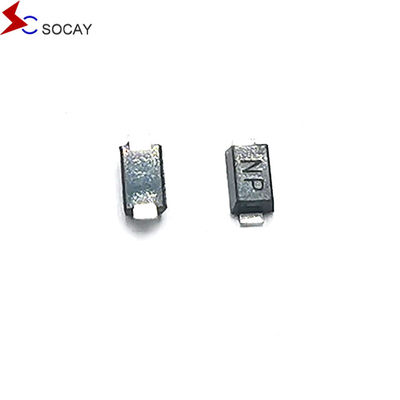

| SMF5.0A Package Type | SOD-123 |
|---|---|
| SMF5.0A Reverse Stand-OffVoltage VRWM | 5.0 |
| SMF5.0A Breakdown Voltage VBR(V) @IT MIN | 6.40 |
| SMF5.0A Breakdown Voltage VBR(V) @IT MAX | 7.00 |
| SMF5.0A TestCurrentIT (mA) | 10 |
