| IR (μA) (Max) | 1.0A |
|---|---|
| Color | Black |
| High Temperature Soldering Guaranted | 260℃/10s |
| Operating Voltage | 5.0V |
| Package | SOD-323 |
| Color | Black |
|---|---|
| Reverse Breakdown Voltage | 5.5V |
| Junction Capacitance | 75 PF |
| Package | SOD-323 |
| Rohs Compliant | Yes |
| Vrwm-Reverse Breakdown Voltage | 12.0V |
|---|---|
| Marking Code | 712 |
| Lead Soldering Temperature | 260℃(10sec) |
| Rohs Compliant | Yes |
| Package | SOT-23-3L Package |
| Vc | 13.0V |
|---|---|
| Rohs Compliant | Yes |

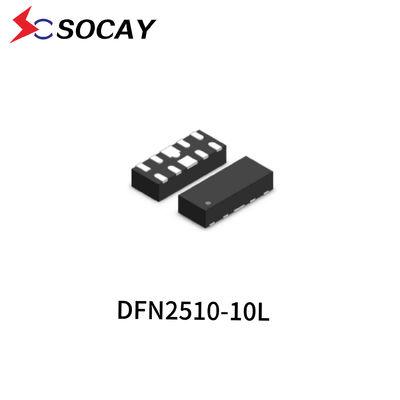

| Package | DFN2510-10L Package |
| Application | High Speed Serial Interfaces, USB 3.0, USB 2.0 |
| Lead Soldering Temperature | 260℃(10sec) |
| Vbr | 6.0V |
|---|---|
| Rohs Compliant | Yes |
| Package | SOT-26 |
| Junction Capacitance | 1.0 PF |
| Application | SIM Ports, USB 2.0 Power And Data Line Protection |
| Clamping Voltage | 10V |
|---|---|
| Package | DFN1006 |
| Junction Capacitance | 15 PF |
| Rohs Compliant | Yes |
| Quantity Per Reel | 10,000pcs |
| Rohs Compliant | Yes |
|---|---|
| Package | SOD-523 |
| Junction Capacitance | 15 PF |
| Quantity Per Reel | 5,000pcs |
| Operating Voltage | 5.0V |
| Operating Voltage | 5.0V |
|---|---|
| Package | DFN1006 |
| Color | Black |
| Clamping Voltage | 20V |
| Rohs Compliant | Yes |
| Extremely-Low Clamping Voltage | Yes |
|---|---|
| Product Name | SE05T6D14GA ESD Array Low Capacitance ESD Protection Operating Voltage 3.3V |
| Quantity Per Reel | 3,000pcs |
| Package | SOT23-6L Package |
| Vrwm (Max.) | 5.0V |
| Operating Voltage | 5.0V |
|---|---|
| Product Category | ESD Array |
| RoHS Compliant | Yes |
| Reel Size | 7 Inch |
| Applications | Cellular Handsets & Accessories, Digital Visual Interface (DVI), RF Circuits, Display Port, USB Ports, MDDI Ports, PCI Express |
