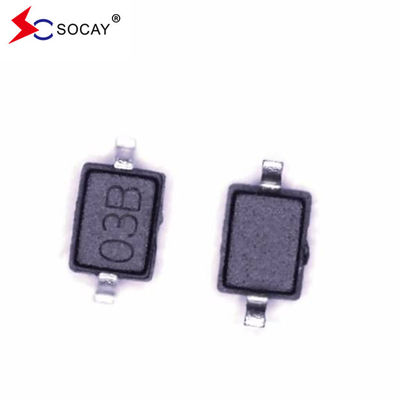

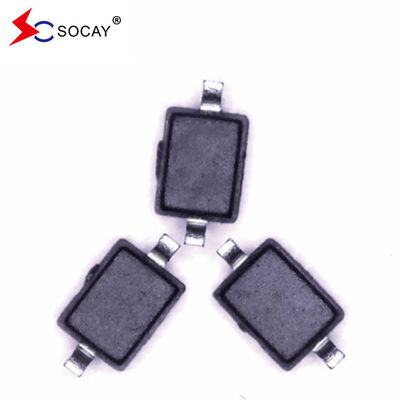

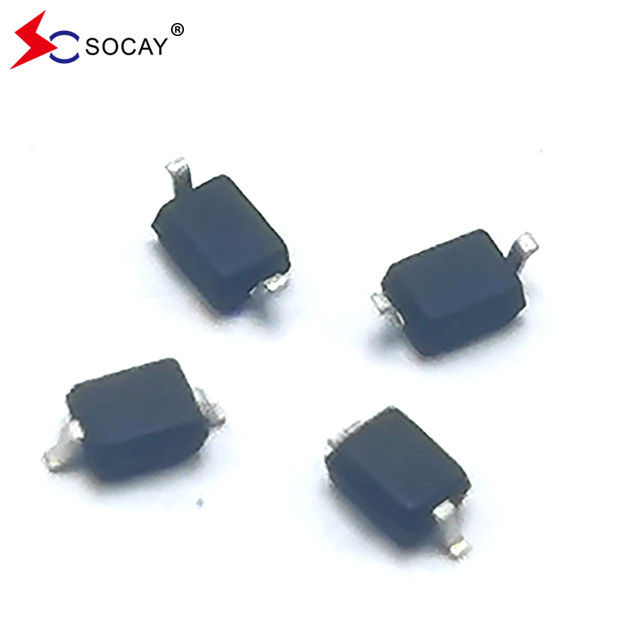

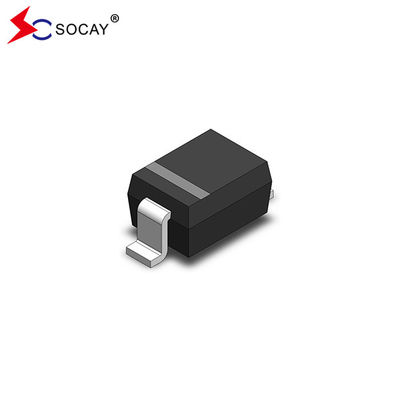

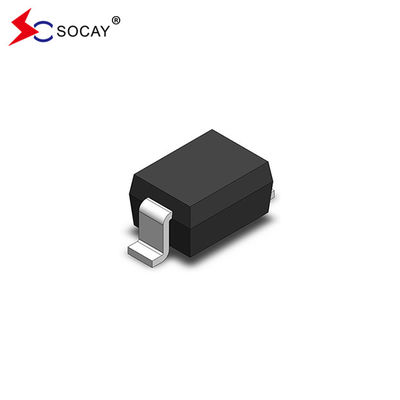

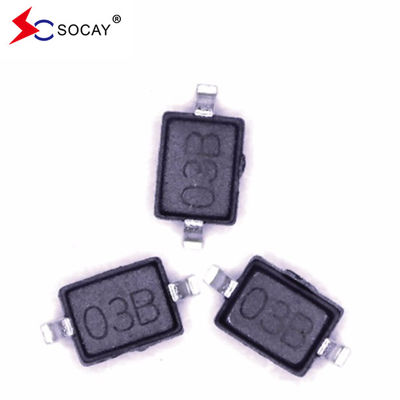

3.3V ESD Protection Diode SE03D3D01GW Transient Voltage Suppressors For ESD Protection
ESD Protection Diode DATASHEET: SE03D3D01GW_v2204.1.pdf
ESD Protection Diode Features:
Response time is ＜1ns
ESD Protection Diode Applications:
USB Interface
ESD Protection Diode Mechanical Characteristics:
ESD Protection Diode Pin Configuration:
ESD Protection Diode Absolute Maximum Ratings (TA=25℃ unless otherwise specified):
| Parameter | Symbol | Value | Units |
ESD per IEC 61000−4−2 (Air) | VESD | ±25 | KV |
| Operating Temperature Range | TJ | −55 ~ +150 | ℃ |
| Storage Temperature Range | TSTG | −55 ~ +150 | ℃ |
| Lead Solering Temperature | TL | 260 | ℃ |
ESD Protection Diode Electrical Characteristics (TA = 25℃ unless otherwise specified):
| Part Number | VRWM (V) (Max) | VB (V) (Min) | IT (mA) | VC @ 1A (V) (Max) | VC (V) | IR (μA) (Max) | CJ (pF) (Typ) | |
| (Max) | (@A) | |||||||
| SE03D3D01GW | 3.3 | 4.0 | 1 | 7.8 | 19.5 | 17 | 0.1 | 0.8 |
Electrical Characteristics Curves:

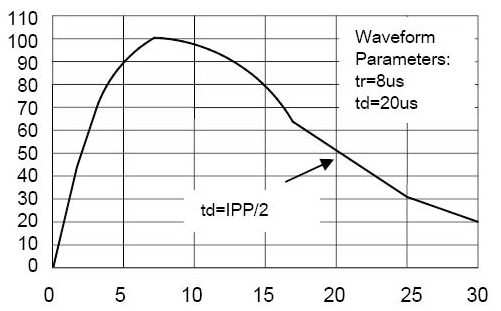

Fig1. Pulse Waveform
Fig2. Non-Repetitive Peak Pulse Power vs. Pulse Time

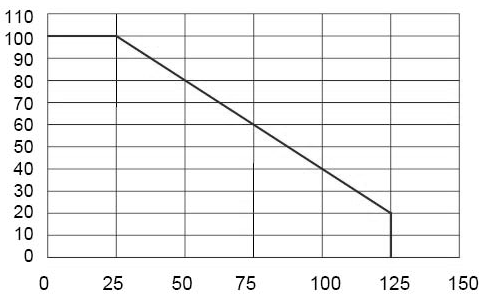

Fig3. Power Derating Curve

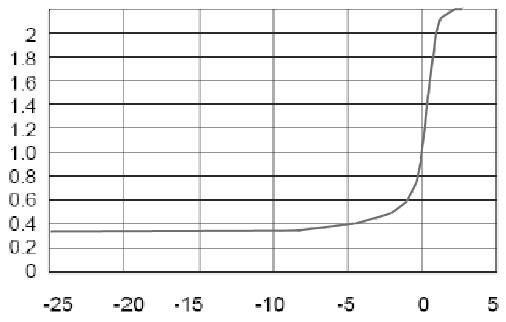

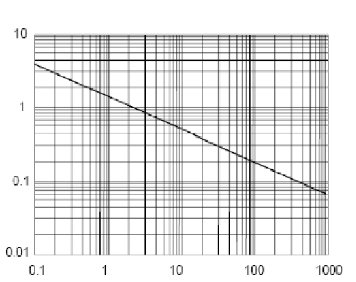

Fig4. Junction Capacitance vs. Reverse Voltage

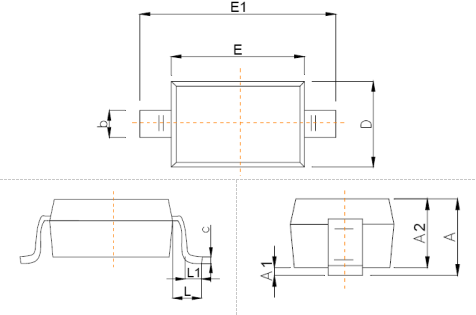

SOD-323 Package Outline & Dimensions:
| Symbol | Dimensions in Millimeters | |
| Min. | Max. | |
| A | -- | 1.00 |
| A1 | 0.00 | 0.10 |
| A2 | 0.80 | 0.90 |
| b | 0.25 | 0.35 |
| c | 0.08 | 0.15 |
| D | 1.20 | 1.40 |
| E | 1.60 | 1.80 |
| E1 | 2.50 | 2.70 |
| e | 1.80 | 2.04 |
| L | 0.475 REF | |
| L1 | 0.25 | 0.40 |
| θ | 0° | 8° |
