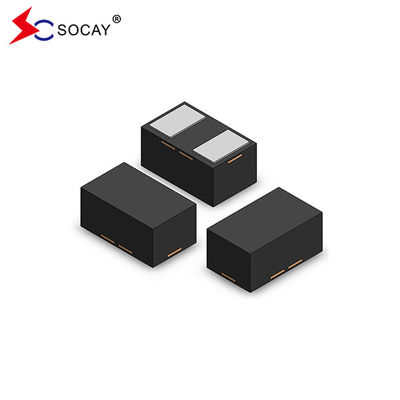

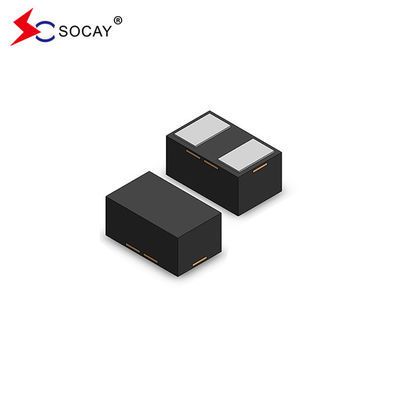

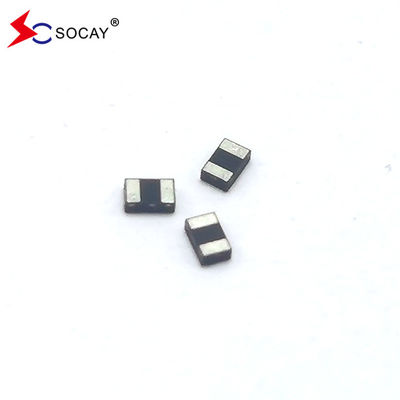

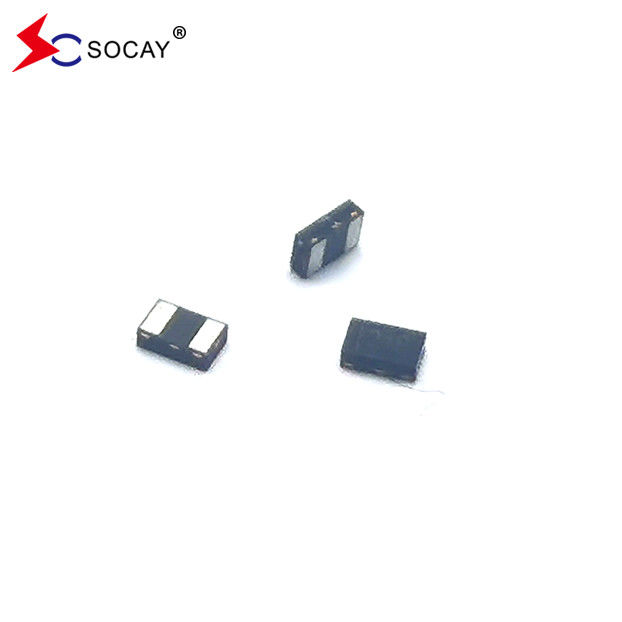

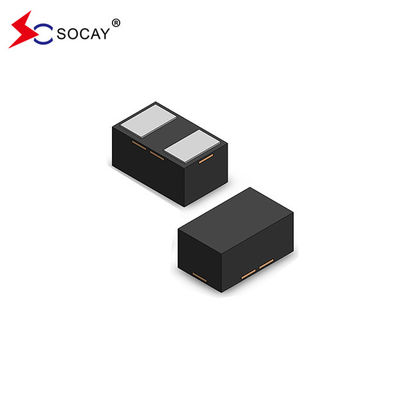

Low Capacitance ESD Arrays for ESD Protection SE03N6L01GZ Operating Voltage 3.3V
ESD Arrays DATASHEET: SE03N6L01GZ_v2204.1.pdf
ESD Arrays Features:
ESD Arrays Applications:
ESD Arrays Mechanical Characteristics:
ESD Arrays Functional Diagram:
ESD Arrays Absolute Maximum Ratings (TA=25℃ unless otherwise specified):
| Symbol | Parameter | Value | Units |
| TL | Lead Soldering Temperature | 260 (10sec) | ºC |
| TOP | Operating Temperature Range | -55 to +125 | ℃ |
| TSTG | Storage Temperature Range | -55 to +150 | ℃ |
| VESD | ESD per IEC61000-4-2 (Air) | ±25 | kV |
| ESD per IEC61000-4-2 (Contact) | ±25 | ||
Electrical Characteristics (TA = 25℃ unless otherwise specified):
| Parameter | Symbol | Conditions | Min. | Typ. | Max. | Units |
| Reverse Working Voltage | VRWM | -- | -- | -- | 3.3 | V |
| Breakdown Voltage | VBR | IT = 1mA | 5.0 | -- | 6.5 | V |
| Leakage Current | IR | VRWM = 3.3V | -- | -- | 1.0 | μA |
| Clamping Voltage | VC | IPP = 1A ,tP = 8/20μs | -- | 9.0 | -- | V |
| Clamping Voltage | VC | IPP = 5A , tP = 8/20μs | -- | 19.0 | -- | V |
| Junction Capacitance | CJ | VR = 0V, f = 1MHz | -- | 0.4 | -- | pF |
ESD Arrays Characteristic Curves:

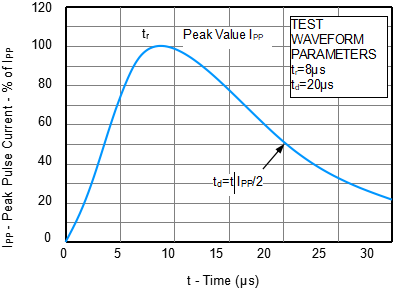

Fig1. 8/20 us Pulse Waveform

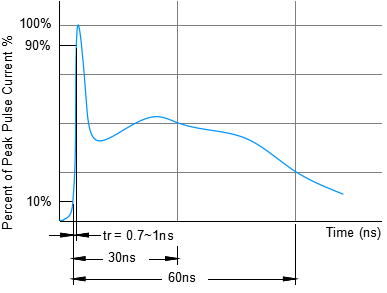

Fig2. ESD Pulse Waveform (according to IEC 61000-4-2)
DFN1006-2L Package Outline & Dimensions:
| Symbol | Millimeters | Inches | ||
| Min. | Max. | Min. | Max. | |
| A | 0.450 | 0.550 | 0.018 | 0.022 |
| A1 | 0.010 | 0.070 | 0.000 | 0.003 |
| D | 0.950 | 1.050 | 0.037 | 0.041 |
| E | 0.550 | 0.650 | 0.022 | 0.026 |
| D1 | 0.450 REF | 0.018 REF | ||
| E1 | 0.400 REF | 0.016 REF | ||
| b | 0.275 | 0.325 | 0.011 | 0.013 |
| e | 0.675 | 0.725 | 0.027 | 0.029 |
| L | 0.275 | 0.325 | 0.011 | 0.013 |
| L1 | 0.010 REF | 0.000 REF | ||
