| Product Name | TVS Diodes |
|---|---|
| Package Type | DO-214AB/SMC |
| Vrwm | 30V |
| Vbr@It (Min.) | 33.3V |
| Vbr@It (Max.) | 36.8V |
| ReverseStand-Off Voltage | 18V |
|---|---|
| BreakdownVoltage@It Min | 20.11 |
| BreakdownVoltage@It Max | 22.01 |
| Test Current | 50mA |
| Maximum Clamping Voltage @IPP | 30.9V |

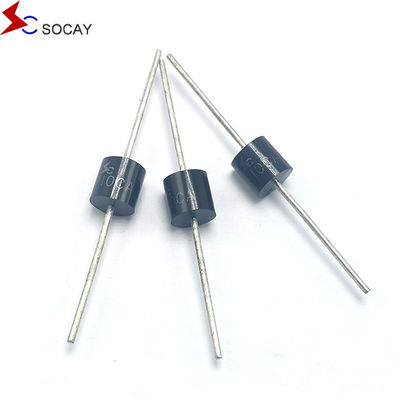

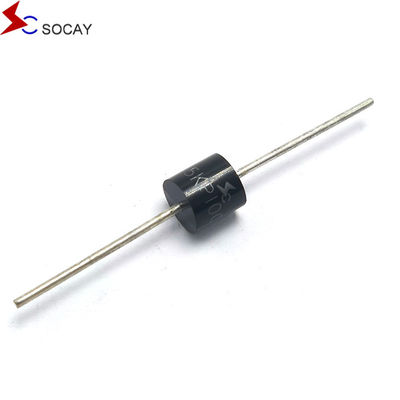

| 15KPA28A ReverseStand-Off Voltage | 28V |
|---|---|
| 15KPA28A BreakdownVoltage@It Min | 31.28V |
| 15KPA28A BreakdownVoltage@It Max | 34.24V |
| 15KPA28A Test Current | 5mA |
| 15KPA28A Maximum Clamping Voltage @IPP | 47.5V |

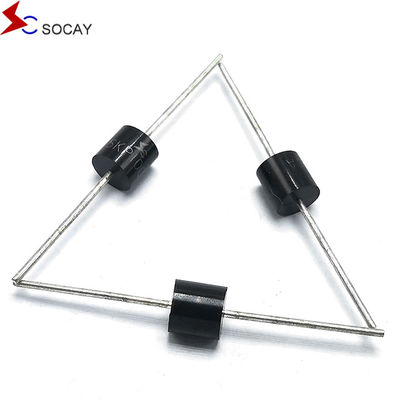

| 5KP10A Vrwm | 10.0V |
|---|---|
| 5KP10A Vbr@It (Min.) | 11.10V |
| 5KP10A Vbr@It (Max.) | 12.30V |
| 5KP10A It | 1mA |
| 5KP10A Vc@Ipp | 17.0V |
| 5KP22CA Vrwm | 22.0V |
|---|---|
| 5KP22CA Vbr@It (Min.) | 24.40V |
| 5KP22CA Vbr@It (Max.) | 26.90V |
| 5KP22CA It | 1mA |
| 5KP22CA Vc@Ipp | 35.5V |

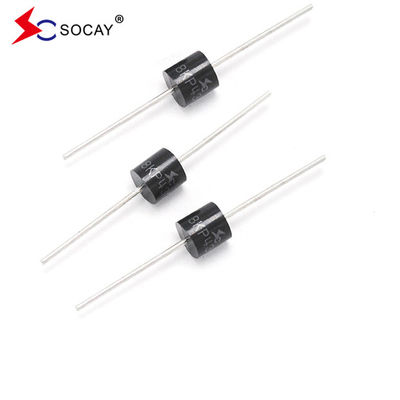

| Product Name | TVS Diodes |
|---|---|
| Package Type | R6/P600 |
| Vrwm | 22.0V |
| Vbr@It (Min.) | 24.4V |
| Vbr@It (Max.) | 26.9V |

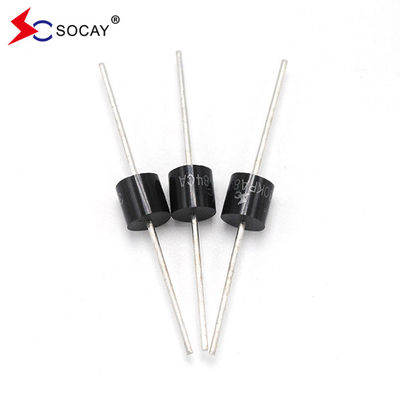

| Item | TVS Diodes |
|---|---|
| Footprint | R6/P600 |
| Vrwm | 30.0V |
| Vbr@It (Min.) | 33.51V |
| It | 50mA |

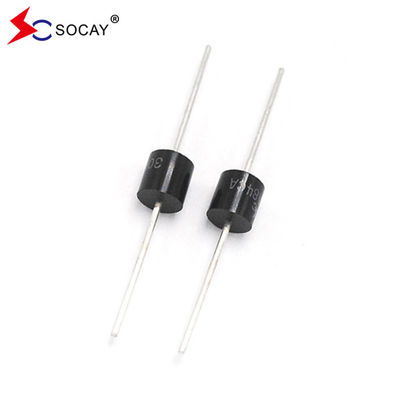

| Product Name | TVS Diodes |
|---|---|
| Package Type | R6/P600 |
| Reverse Stand-Off Voltage | 100.0V |
| Breakdown Voltage@It Min | 111.0V |
| Breakdown Voltage@It Max | 123.0V |

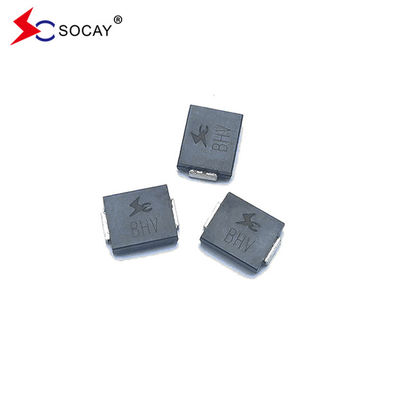

| Name | TVS Diodes |
|---|---|
| Reverse Stand-off Voltage | 78.0V |
| Breakdown Voltage @It Min | 86.7V |
| Breakdown Voltage @It Max | 95.8V |
| Test Current | 1mA |
| Product Name | TVS Diodes |
|---|---|
| Package Type | R6/P600 |
| Vrwm | 51.0V |
| Vbr@It (Min.) | 56.7V |
| Vbr@It (Max.) | 62.7V |
